Comet Select Linear LED Strip

Comet Select Linear LED Strip — 15/20/25W selectable · up to 3,283 lm · 3500/4000/5000K selectable · 120–277V · 0–10V dimming · IP66 · DLC Standard · White finish

ECO-X-LJC2F25WSCSBLV15–80W · Watts
Series platform · Indoor
Linear

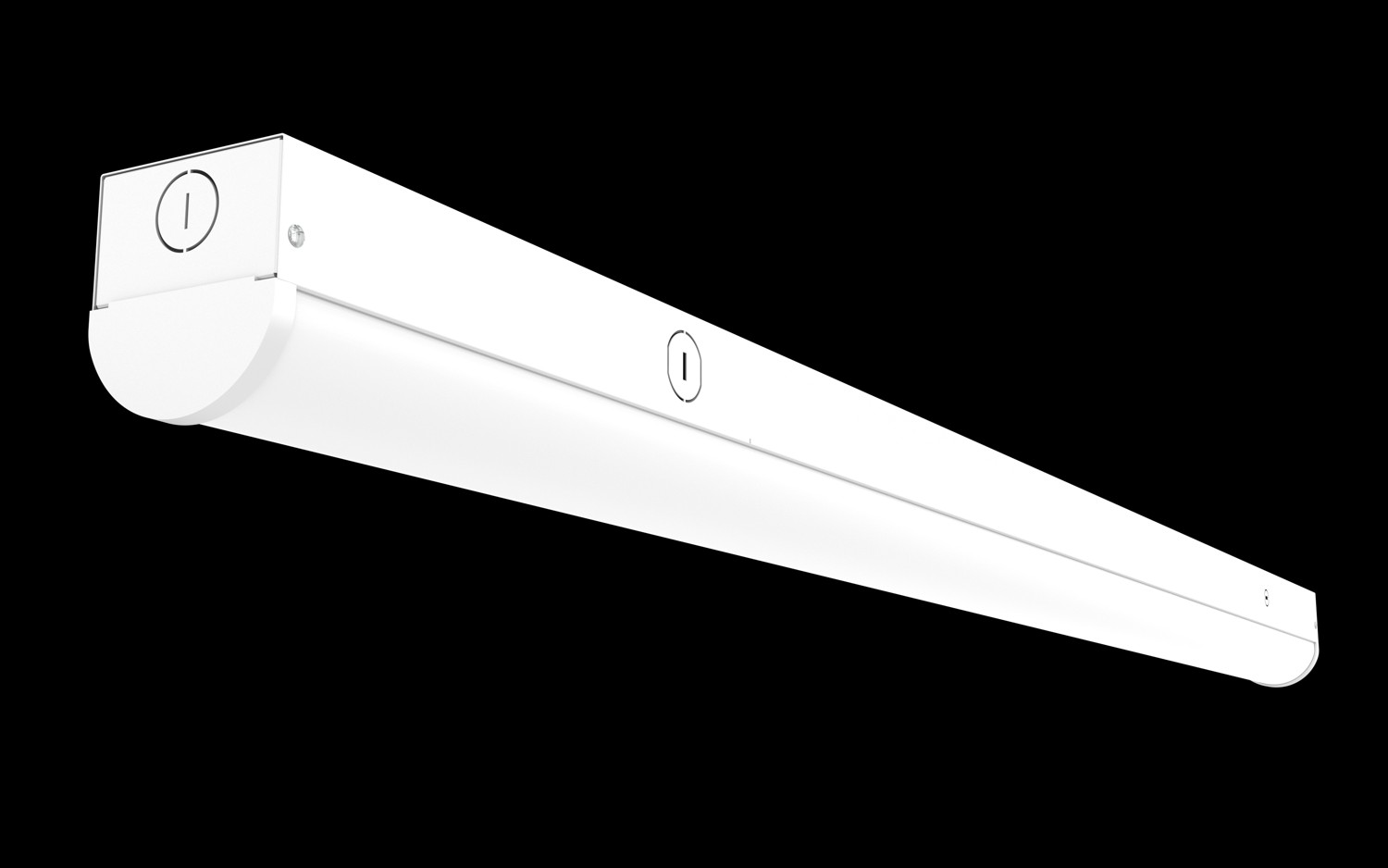

Comet Select Linear LED Strip product photograph
Plate 01 — ECO-X-LJC2F25WSCSBLVFrom PIM
130 lm/W
Efficacy
10,790
Max lumens
50,000 hrs
Rated life · L70
10 yrs
Non-prorated warranty

Configure on-site

one fixture · every spec
Power
15–80W
9 configs
Color
3.5K / 4K / 5K
tunable
Voltage
120-277
universal
Stock
9
US stock
In the field / Linear
Comet Select Linear LED Strip installation environment
On the job

Built for the aisles and workbenches that never sit idle.

CCT selection on site.

Indoor · Linear
Full specs / Comet Select Linear LED Strip
Wattage Range15–80W
Lumen Output2,180–10,790 lm
Efficacy130
CCT Options3.5K / 4K / 5K (selectable)
CRI80
Voltage120-277
Dimming / Controls0-10V Dim to off
IP RatingIP66
FinishWhite
CertificationsDLC 5.1 Standard, 10-YR Warranty
Warranty10-year non-prorated
US Stock9 configurations · $200M+ inventory
The sheet / Series ECO-X-LJC2F25WSCSBLV

Comet Select Linear LED Strip — 15/20/25W selectable · up to 3,283 lm · 3500/4000/5000K selectable · 120–277V · 0–10V dimming · IP66 · DLC Standard · White finish

LinearIndoorUS StockArchitect's Select
DLC 5.1 Standard10-YR Warranty
Features
  • 019 configurations in US stock
  • 02Efficacy up to 130 lm/W
  • 0310-year non-prorated warranty
  • 040-10V Dim to off dimming
  • 05DLC 5.1 Standard
  • 06Meanwell driver, premium chip sets

The sheet is the source of truth.

Every number on this page comes off the specification sheet and the PIM record behind it. Download the full PDF for complete photometric data, wiring diagrams, and mounting details.

Specification sheet (PDF)Photometric files (IES)
US Stock / 9 configurations
ModelWattsLumensCCTVoltageImage
ECO-X-LJC2F25WSCSBLV15–25W2,180–3,2833.5K/4K/5K120-277ECO-X-LJC2F25WSCSBLV
ECO-X-LJC4F50WSCSBLV30–50W2,180–6,2843.5K/4K/5K120-277ECO-X-LJC4F50WSCSBLV
ECO-X-LJC4F50WSCSBLVS-E30–50W2,180–6,2843.5K/4K/5K120-277ECO-X-LJC4F50WSCSBLVS-E
ECO-X-LJC8F80WSCSBLV60–80W2,180–10,6133.5K/4K/5K120-277ECO-X-LJC8F80WSCSBLV
ECO-X-LJC2F25WSCSBUV15–25W2,180–3,3713.5K/4K/5K120-277ECO-X-LJC2F25WSCSBUV
ECO-X-LJC4F50WSCSBUV30–50W4,243–6,3683.5K/4K/5K120-277ECO-X-LJC4F50WSCSBUV
ECO-X-LJC4F50WSCSBUVE30–50W4,243–6,3683.5K/4K/5K120-277ECO-X-LJC4F50WSCSBUVE
ECO-X-LJC4F50WSCSBUVS30–50W4,243–6,3683.5K/4K/5K120-277ECO-X-LJC4F50WSCSBUVS
ECO-X-LJC8F80WSCSBUV60–80W8,498–10,7903.5K/4K/5K120-277ECO-X-LJC8F80WSCSBUV
Where to buy

Put the Comet Select Linear LED Strip on your project.

Tell us about the site — our team will align you with a partnered EcoLite provider in your area, with photometrics run for your layout before anyone quotes a number.

Find your provider
