Meteor 8 Area Light

Meteor 8 Area Light — 100W · 13,000 lm · 5000K · 120–277V · 0–10V dimming · DLC Premium, UL, cUL · Bronze finish

ECO-LS-SBC8B-100W-120V-50K100–450W · Watts
Series platform · Outdoor
Area Lights
Meteor 8 Area Light product photograph
Plate 01 — ECO-LS-SBC8B-100W-120V-50KFrom PIM
130 lm/W
Efficacy
58,500
Max lumens
50,000 hrs
Rated life · L70
10 yrs
Non-prorated warranty

Configure on-site

one fixture · every spec
Power
100–450W
16 configs
Color
4K / 5K / 5.7K
tunable
Voltage
120-277
universal
Stock
16
US stock
In the field / Area Lights
Meteor 8 Area Light installation environment
On the job

Built for the lots and campuses that never lock up.

80–600 W platforms with field-selectable wattage and CCT options.

Outdoor · Area Lights
Full specs / Meteor 8 Area Light
Wattage Range100–450W
Lumen Output13,000–58,500 lm
Efficacy130
CCT Options4K / 5K / 5.7K (selectable)
CRI72
Voltage120-277
Dimming / Controls0-10
FinishBronze
CertificationsUL, CUL, DLC Premium, 10-YR Warranty
Warranty10-year non-prorated
US Stock16 configurations · $200M+ inventory
The sheet / Series ECO-LS-SBC8B-100W-120V-50K

Meteor 8 Area Light — 100W · 13,000 lm · 5000K · 120–277V · 0–10V dimming · DLC Premium, UL, cUL · Bronze finish

Area LightsOutdoorUS StockArchitect's Select
ULCULDLC Premium10-YR Warranty
Features
  • 0116 configurations in US stock
  • 02Efficacy up to 130 lm/W
  • 0310-year non-prorated warranty
  • 040-10 dimming
  • 05UL, CUL
  • 06Meanwell driver, premium chip sets

The sheet is the source of truth.

Every number on this page comes off the specification sheet and the PIM record behind it. Download the full PDF for complete photometric data, wiring diagrams, and mounting details.

Specification sheet (PDF)Photometric files (IES)
US Stock / 16 configurations
ModelWattsLumensCCTVoltageImage
ECO-LS-SBC8B-100W-120V-50K100W13,0005K120-277ECO-LS-SBC8B-100W-120V-50K
ECO-LS-SBC8B-100W-120V-50K-P100W13,0005K120-277ECO-LS-SBC8B-100W-120V-50K-P
ECO-LS-SBC8B-150W-120V-50K150W19,5005K120-277ECO-LS-SBC8B-150W-120V-50K
ECO-LS-SBC8B-150W-120V-50K-P150W19,5005K120-277ECO-LS-SBC8B-150W-120V-50K-P

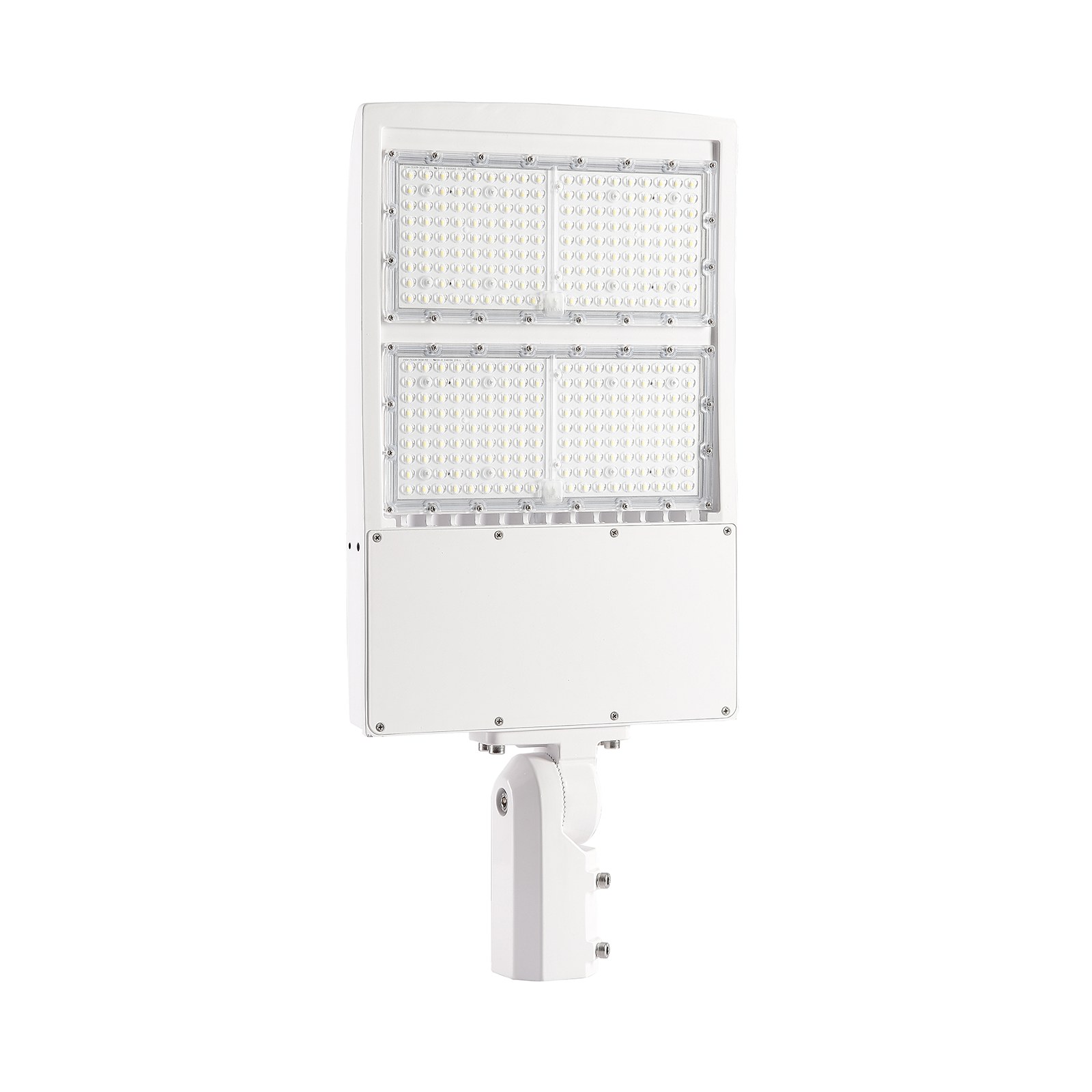

ECO-LS-SBC8B-150W-120V-50K-W150W19,5005K120-277ECO-LS-SBC8B-150W-120V-50K-W
ECO-LS-SBC8B-150W-120V-57K150W19,5005.7K120-277ECO-LS-SBC8B-150W-120V-57K
ECO-LS-SBC8B-150W-480V-50K150W19,5005K277-480ECO-LS-SBC8B-150W-480V-50K
ECO-LS-SBC8B-200W-120V-50K200W26,0005K120-277ECO-LS-SBC8B-200W-120V-50K
ECO-LS-SBC8B-200W-120V-50K-P200W26,0005K120-277ECO-LS-SBC8B-200W-120V-50K-P

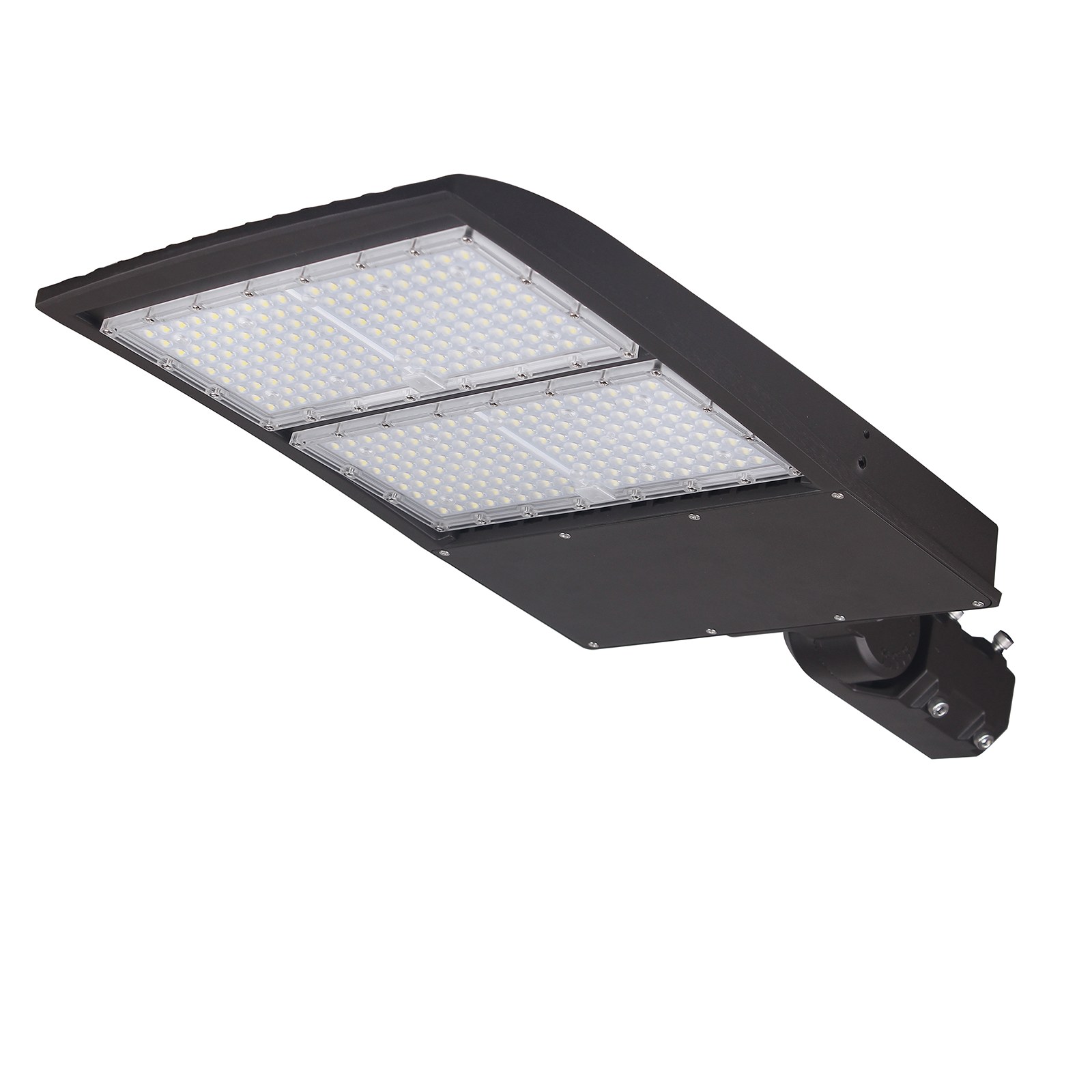

ECO-LS-SBC8B-300W-120V-40K300W39,0004K120-277ECO-LS-SBC8B-300W-120V-40K
ECO-LS-SBC8B-300W-120V-50K300W39,0005K120-277ECO-LS-SBC8B-300W-120V-50K
ECO-LS-SBC8B-300W-120V-50K-P300W39,0005K120-277VECO-LS-SBC8B-300W-120V-50K-P

+4 more configurations in US stock
