Omni Gimbal Downlight

Omni Gimbal Downlight — 16W · 1,200 lm · 2700/3000/3500/4000/5000K selectable · 120V · Triac · ETL, cETL, Energy Star

ECO-LS-6C-16W-120V-5CCT16–16W · Watts
Series platform · Indoor
Residential Down Light

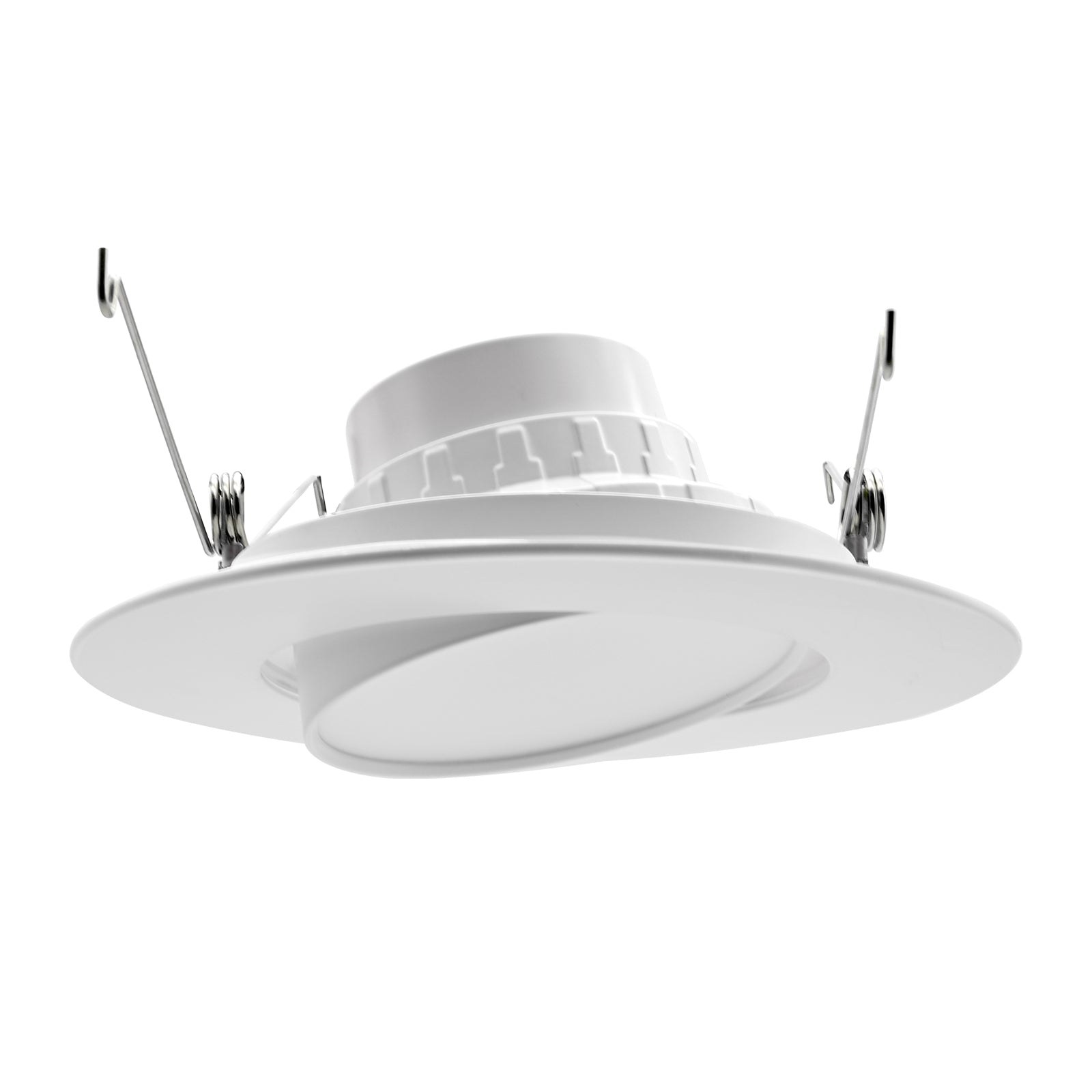

Omni Gimbal Downlight product photograph
Plate 01 — ECO-LS-6C-16W-120V-5CCTFrom PIM
75 lm/W
Efficacy
1,200
Max lumens
50,000 hrs
Rated life · L70
10 yrs
Non-prorated warranty

Configure on-site

one fixture · every spec
Power
16–16W
1 configs
Color
2.7K / 3K / 3.5K / 4K / 5K
tunable
Voltage
120
universal
Stock
1
US stock
In the field / Residential Down Light
Omni Gimbal Downlight installation environment
On the job

Built for the kitchens and hallways that never feel institutional.

Five CCTs at the switch, wet-location rated.

Indoor · Residential Down Light
Full specs / Omni Gimbal Downlight
Wattage Range16W
Lumen Output1,200–1,200 lm
Efficacy75
CCT Options2.7K / 3K / 3.5K / 4K / 5K (selectable)
CRI92
Voltage120
Dimming / ControlsTriac
FinishN/A
CertificationsEnergy Star, ETL / cETL Listed, 10-YR Warranty
Warranty10-year non-prorated
US Stock1 configurations · $200M+ inventory
The sheet / Series ECO-LS-6C-16W-120V-5CCT

Omni Gimbal Downlight — 16W · 1,200 lm · 2700/3000/3500/4000/5000K selectable · 120V · Triac · ETL, cETL, Energy Star

Residential Down LightIndoorUS StockArchitect's Select
Energy StarETL / cETL Listed10-YR Warranty
Features
  • 011 configurations in US stock
  • 02Efficacy up to 75 lm/W
  • 0310-year non-prorated warranty
  • 04Triac dimming
  • 05Energy Star, ETL / cETL Listed
  • 06Meanwell driver, premium chip sets

The sheet is the source of truth.

Every number on this page comes off the specification sheet and the PIM record behind it. Download the full PDF for complete photometric data, wiring diagrams, and mounting details.

Specification sheet (PDF)Photometric files (IES)
US Stock / 1 configurations
ModelWattsLumensCCTVoltageImage
ECO-LS-6C-16W-120V-5CCT16W1,2002.7K/3K/3.5K/4K/5K120ECO-LS-6C-16W-120V-5CCT
