Sky Bay 5 UFO Select

Sky Bay 5 UFO Select High Bay — 100/120/150W selectable · up to 24,000 lm · 4000K · 120–277V · 0–10V dimming · DLC Premium, ETL, cETL · Black finish

ECO-LS-5EHB-100/120/150W-120V-40K-SV2100–270W · Watts
Series platform · Indoor
High Bay
Sky Bay 5 UFO Select product photograph
Plate 01 — ECO-LS-5EHB-100/120/150W-120V-40K-SV2From PIM
180 lm/W
Efficacy
48,600
Max lumens
50,000 hrs
Rated life · L70
10 yrs
Non-prorated warranty

Configure on-site

one fixture · every spec
Power
100–270W
12 configs
Color
4K / 5K / 5.7K
tunable
Voltage
120-277
universal
Stock
12
US stock
In the field / High Bay
Sky Bay 5 UFO Select installation environment
On the job

Built for the warehouses and plants that never stop moving.

35–420 W platforms, 10-year non-prorated warranty, stocked in the US.

Indoor · High Bay
Full specs / Sky Bay 5 UFO Select
Wattage Range100–270W
Lumen Output16,000–48,600 lm
Efficacy180.0
CCT Options4K / 5K / 5.7K (selectable)
CRI72
Voltage120-277
Dimming / Controls0-10
FinishBlack
CertificationsETL, CETL, DLC Premium, 10-YR Warranty
Warranty10-year non-prorated
US Stock12 configurations · $200M+ inventory
The sheet / Series ECO-LS-5EHB-100/120/150W-120V-40K-SV2

Sky Bay 5 UFO Select High Bay — 100/120/150W selectable · up to 24,000 lm · 4000K · 120–277V · 0–10V dimming · DLC Premium, ETL, cETL · Black finish

High BayIndoorUS StockArchitect's Select
ETLCETLDLC Premium10-YR Warranty
Features
  • 0112 configurations in US stock
  • 02Efficacy up to 180.0 lm/W
  • 0310-year non-prorated warranty
  • 040-10 dimming
  • 05ETL, CETL
  • 06Meanwell driver, premium chip sets

The sheet is the source of truth.

Every number on this page comes off the specification sheet and the PIM record behind it. Download the full PDF for complete photometric data, wiring diagrams, and mounting details.

Specification sheet (PDF)Photometric files (IES)
US Stock / 12 configurations
ModelWattsLumensCCTVoltageImage
ECO-LS-5EHB-100/120/150W-120V-40K-SV2100–150W16,000–24,0004K120-277ECO-LS-5EHB-100/120/150W-120V-40K-SV2
ECO-LS-5EHB-100/120/150W-120V-50K-SV3100–150W16,000–24,0005K120-277ECO-LS-5EHB-100/120/150W-120V-50K-SV3
ECO-LS-5EHB-100/120/150W-120V-50K-SV3-W100–150W16,000–24,0005K120-277ECO-LS-5EHB-100/120/150W-120V-50K-SV3-W
ECO-LS-5EHB-100/120/150W-480V-50K-SV3100–150W18,000–27,0005K277-480ECO-LS-5EHB-100/120/150W-480V-50K-SV3
ECO-LS-5EHB-170/150/100W-XXK100–170W18,000–30,6004K/5K/5.7KbothECO-LS-5EHB-170/150/100W-XXK
ECO-LS-5EHB-180/200/240W-120V-50K-SV3-W180–240W28,800–38,4005K120-277ECO-LS-5EHB-180/200/240W-120V-50K-SV3-W
ECO-LS-5EHB-180/200/240W-480V-40/50/57K-SV3180–240W28,800–38,4004K/5K/5.7K277-480ECO-LS-5EHB-180/200/240W-480V-40/50/57K-SV3
ECO-LS-5EHB-240W-120V-40KPK240W38,4004K120-277ECO-LS-5EHB-240W-120V-40KPK
ECO-LS-5EHB-240W-120V-50K-SV2-W180–240W32,400–43,2005K120–277 VECO-LS-5EHB-240W-120V-50K-SV2-W
ECO-LS-5EHB-240W-120V-50K-SV3180–240W28,800–38,4005K120-277ECO-LS-5EHB-240W-120V-50K-SV3

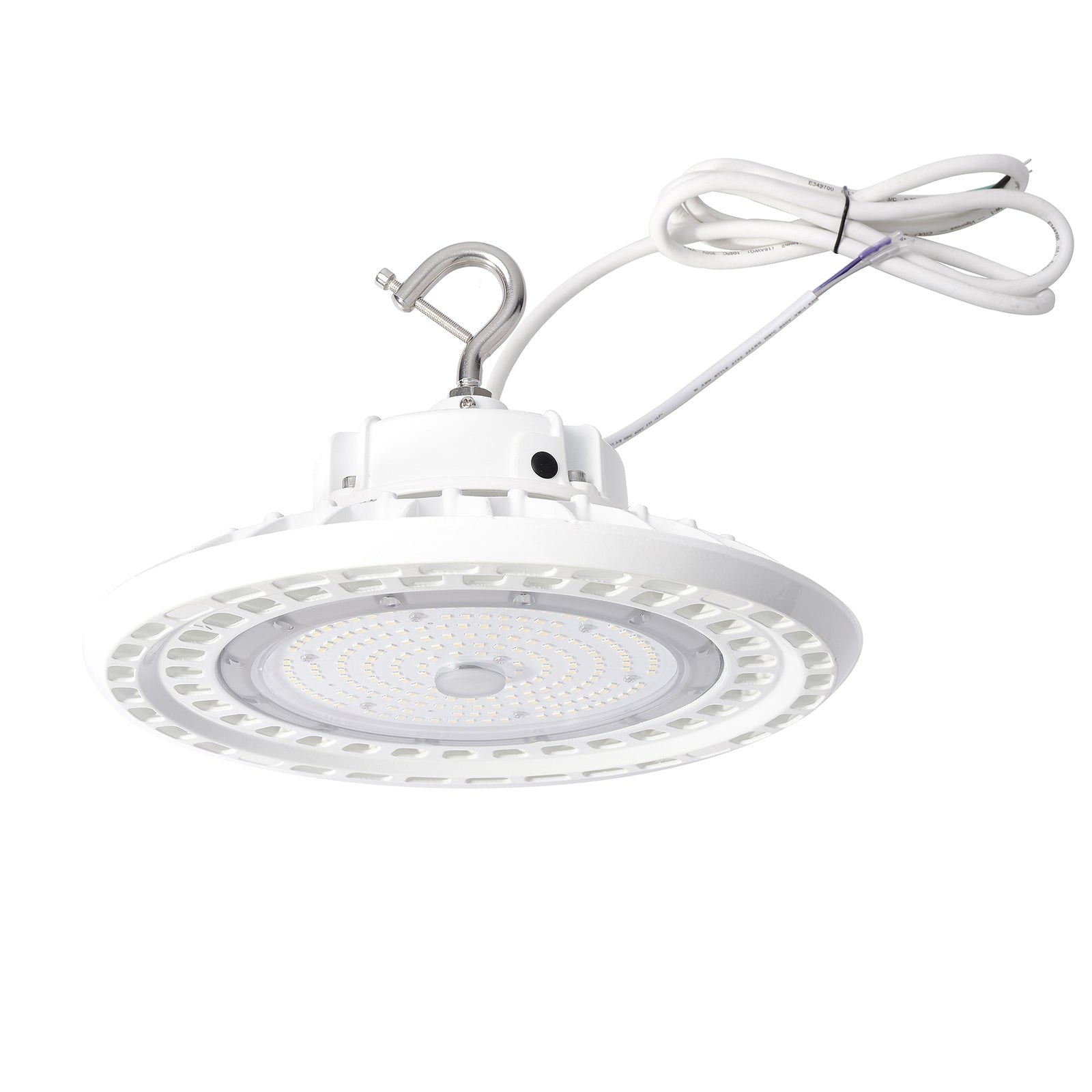

ECO-LS-5EHB-240W-120V-XXK-WV3180–240W36,0004K/5K/5.7K120-277ECO-LS-5EHB-240W-120V-XXK-WV3

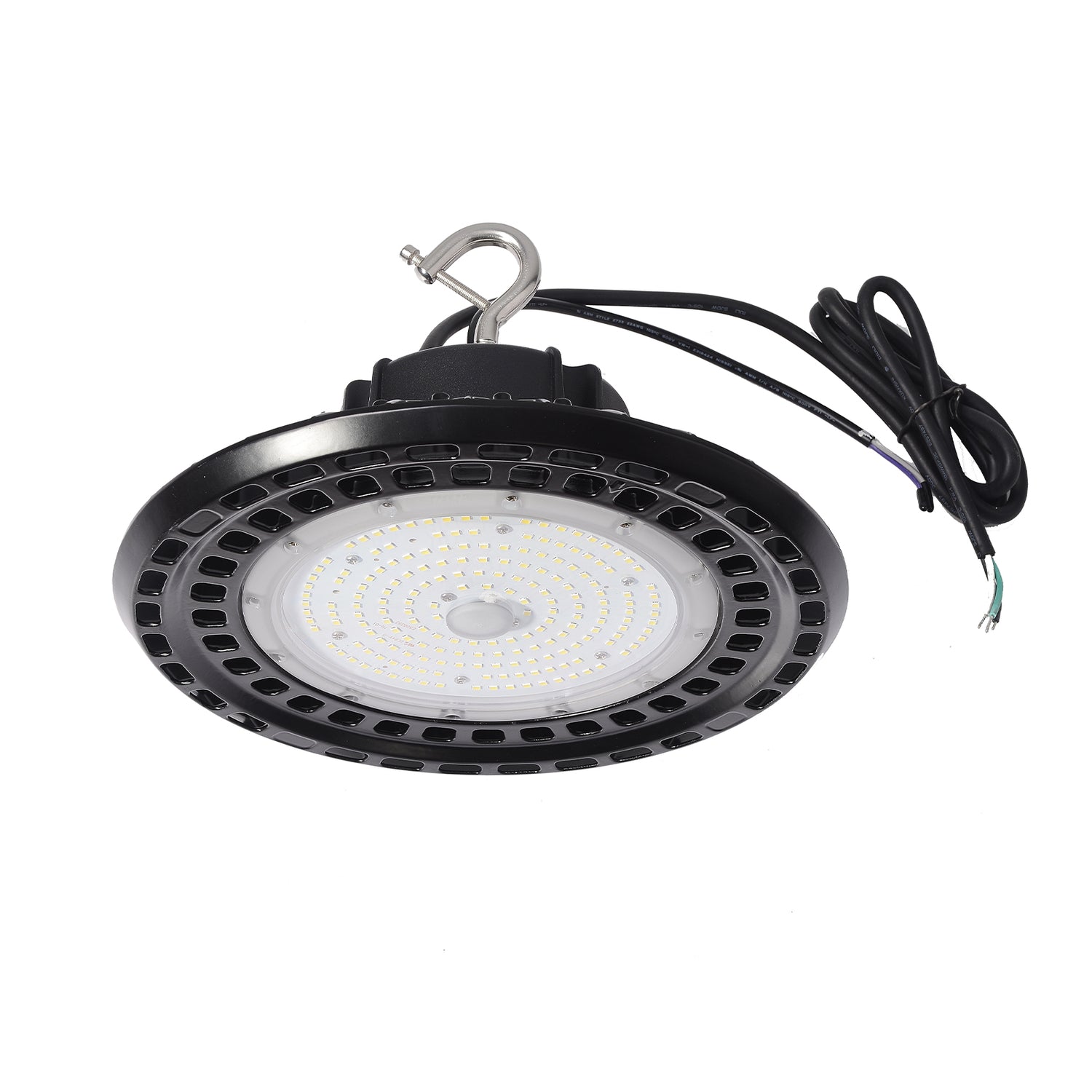

ECO-LS-5EHB-270/240/200W-XXK200–270W36,000–48,6004K/5K/5.7KbothECO-LS-5EHB-270/240/200W-XXK
